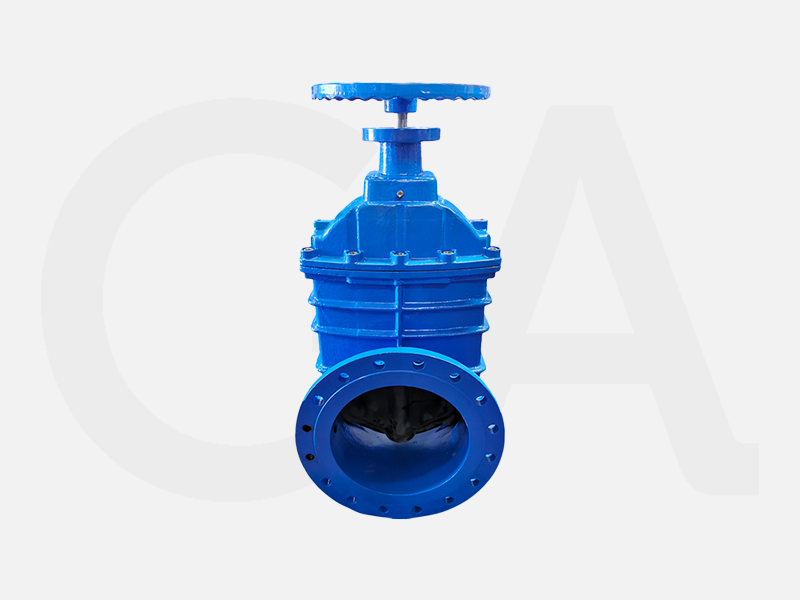

FIG. B03 RESILIENT SEAT GATE VALVES DN350 – DN600

Usage with clean potable water
Available in sizes 350mm – 600mm
Actuator Mounting ISO Flange
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Stainless steel stem for strength and corrosion resistance.
Supplied with cap top or handwheel as standard.

Suitable for:

Valve type:

Description

Resilient Seat Gate Valves – Introducing Our Robust and Versatile Valves



Crafted for Reliability and Performance

In the realm of water management, reliability and performance are paramount. Here at GA Valves, we take pride in offering resilient seat gate valves meticulously crafted to meet the demands of clean potable water systems.

Built for Strength and Endurance

To begin with, our valves feature a robust ductile iron construction, ensuring they can withstand the rigours of daily operation with ease. Additionally, the blue fusion bonded epoxy coating, applied in accordance with BS EN 14901 standards, provides exceptional corrosion resistance, guaranteeing longevity and durability.

Facilitating Smooth Flow

Moreover, at the heart of our resilient seat gate valves lies a commitment to optimal flow. With a full clear bore design and a stainless steel stem, our valves ensure smooth and efficient water flow, minimising disruptions and maximising efficiency.

Customisable Solutions to Suit Your Needs

Furthermore, we understand that every application is unique. Therefore, we offer a range of features and options to cater to your specific requirements. From handwheel or cap top operation to clockwise or anti-clockwise functionality, we have you covered. Plus, with accessories like chain wheels, extension spindles, and locking devices, customisation is effortless.

Rigorously Tested for Quality Assurance

It’s important to note that our valves undergo rigorous testing to ensure compliance with the highest standards, including EN12266 inspection and testing protocols. With a shell test rating of 24 bar and a seat test rating of 18 bar, along with a suitable temperature range of 0°C to 80°C, you can trust our valves to perform reliably in any environment.

Committed to Excellence

In conclusion, at GA Valves, we’re committed to delivering excellence in every aspect of our products and services. For further information or assistance, please don’t hesitate to contact us. Your satisfaction is our top priority, and we’re here to help every step of the way. Trust GA Valves for all your resilient seat gate valve needs – because when it comes to water management, excellence is non-negotiable.

Options

Handwheel or Cap Top
Actuator
Clock or Anti Clock Operation
Chain Wheels
Extension Spindles
Locking Devices
Flange Fixing Kits

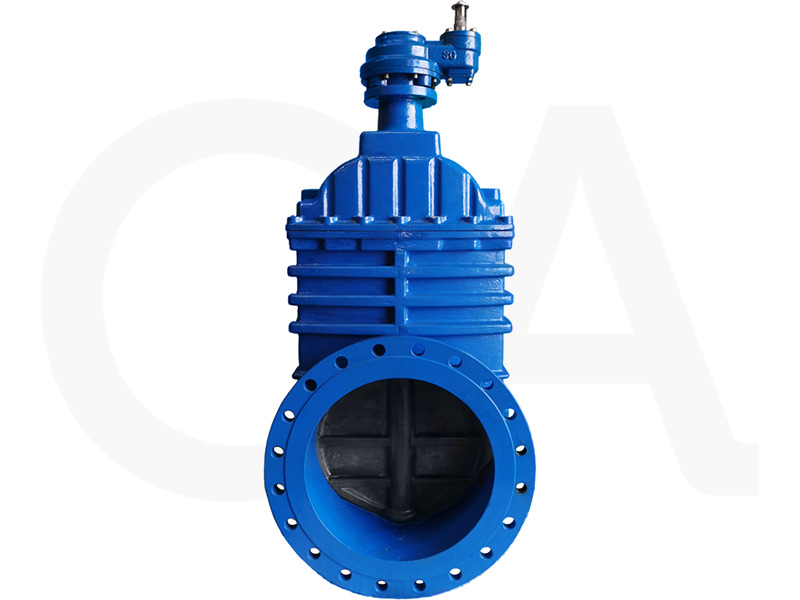

Gear Box

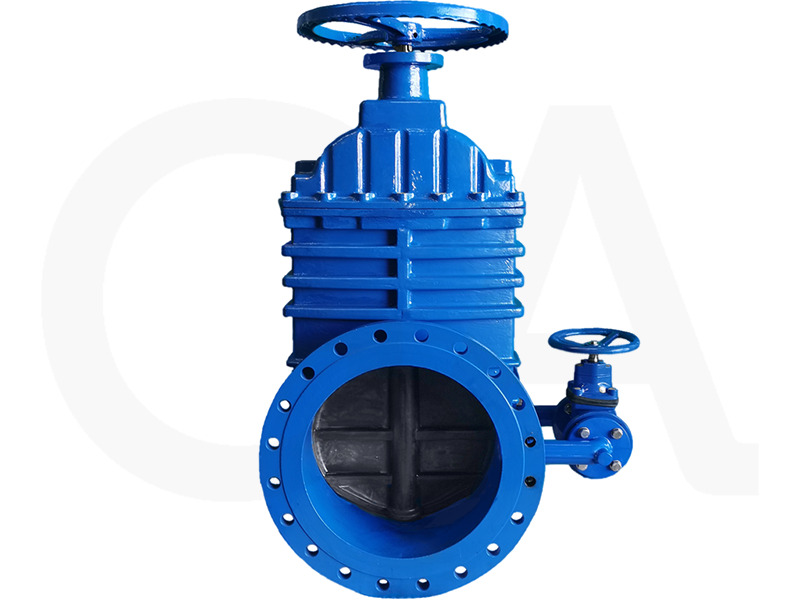

By Pass Available Ex Stock
PN25 Available on request
Note: Actuators must be fitted with the valve stem in the vertical position

Technical Specification

PartDescriptionMaterialStandards
1BodyDuctile IronBSEN 5163 :EN-GJS-500-7
2DiscDI + EPDMBSEN 5163 :EN-GJS-500-7+BS EN2428
3Bonnet GasketEPDMBS EN2428
4StemStainless SteelSS420
5BonnetDuctile IronBSEN 5163 :EN-GJS-500-7
6O RingEPDMBS EN2428
7Thrust WasherBrassCuZn39Pb1
8O RingEPDMBS EN2428
9O RingEPDMBS EN2428
10GlandDuctile IronBSEN 5163 :EN-GJS-500-7
11ScrewStainless SteelA2
12PlugStainless Steel304
13Stem NutBronzeA110Fe3
14Blind PlateQ235
15ScrewStainless SteelA2
16Lift RingDuctile IronBSEN 5163 :EN-GJS-500-7
17Square CapDuctile IronBSEN 5163 :EN-GJS-500-7
